HL-086-05
ECH
Synchronized Soft Close Sliding System for Two Sliding Doors
Type | sliding door roller |
Brand name | ECH |
Model NO. | HL-086-05 |
Material | zinc alloy + steel |
Finish | SSS or to order |
Max door weight | <60KG |
Door width | 635-1200mm |
Door thickness | 30-45mm |
Inner packing | soft foam pastic bag,color box and blister packing |
Standard export packing | one piece in one plastic bag,one pair in one white box ,20 pairs in one carton |
Delivery day | 30 working days |

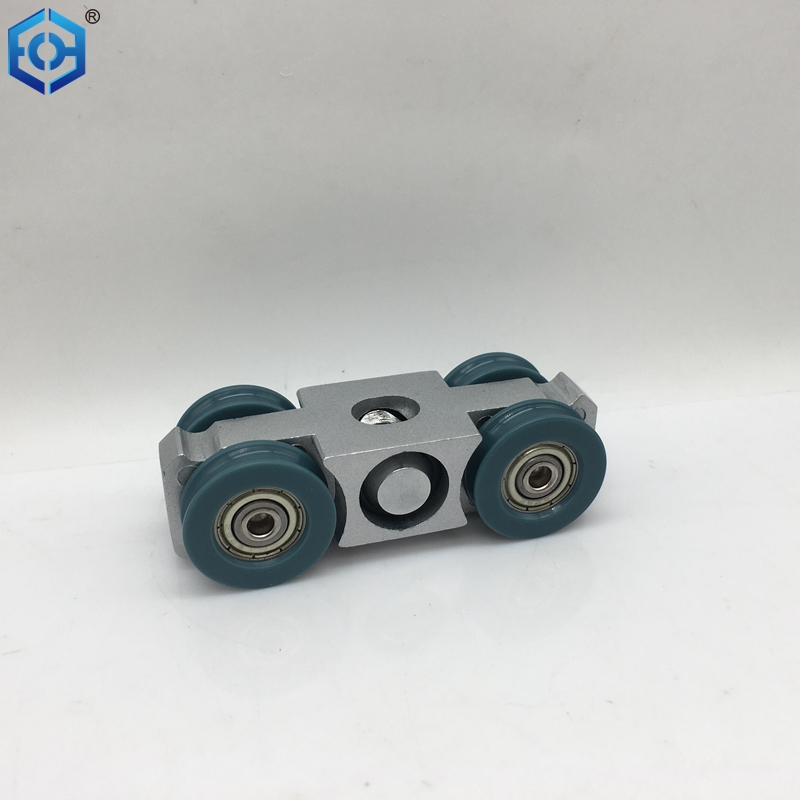

Soft-closing sliding door roller
material: zinc alloy+aluminum
door width: 635-1200mm
door thickness: 30-45mm
door weight: ≤60kg
Characteristics and parameters of damper hanger roller:
1. New hydraulic damper structure, advanced technology, initial to use single damper to achieve two-way gate damper function.
2. Suspension structure connection is simple, fast and convenient to install.
3. Minimum door width 4-wheel ≥635-1200mm
4. Door thickness: ≥30-45mm
5. Load-bearing: 4-wheel ≤100kg (recommended 60kg)
6. Life test: repeated push-pull test ≥30000 times.

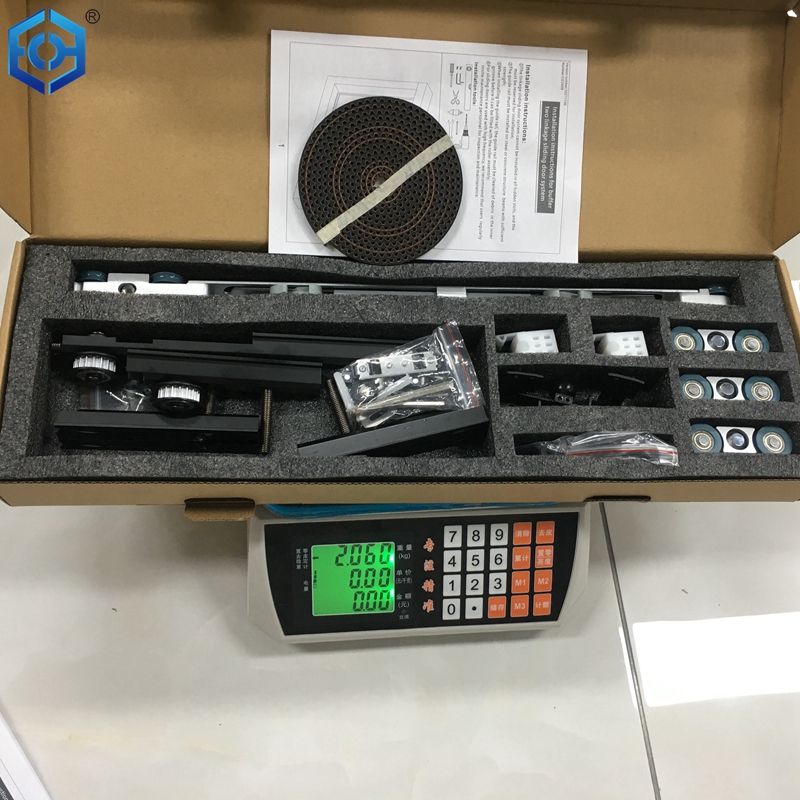

Product picture
