| Quantity: | |
|---|---|
BDH-A11
ECH
Stainless Steel Strap Sliding Barn Door Track And Hardware Kit
Model number: BDH-A11
Material: Carbon steel
Surface finish:black/dark coffee powder coating or other color as required
Load bearing: 175kgs
Application: interior/exterior wooden doors for living room/store room/veranda/laundry.etc
Single/double open wooden door
Rail/track length: 2m/79" standard or as customized
Door thickness : 1 3/8" --1 5/8" (35-45MM)
Door width:31 1/2" --39 3/8"
Packing:2055*115*80/set
Warranty: 3--5years
Track length&door width Match: 1500mm track--under 750mm door
1800mm track--under 900mm door
2000mm track--800-1000mm door
3000mm track(1500+1500)--1500mm door
| ITEM | Qty | Material&Surface |
| Sliding Track(Length can be customized.) | 1*2mm | Carbon Steel +black powder coating / painting |
| Sliding Rollers | 2 | Carbon Steel +black powder coating / painting |
| Door Stops | 2 | Carbon Steel +black powder coating / painting |
| Wall Mounts &Screws | 5 | Carbon Steel +black powder coating / painting |
| Anti-Jump Disks | 2 | POM |
| Floor Guide | 1 | POM |
| Door Handle(not included in the kit) | 1 | Carbon Steel +black powder coating / painting |
New door stop with damper
we already developed a new technology model,New door stop with damper, which replacing the original door stop and original Anti-jump.Technology is more advanced,the structure is more closely,we'd like to highly recommend this model to you,Pls have a try in your local market, if possible.
Product Picture:
Stainless Steel Strap Sliding Barn Door Track And Hardware Kit
Model number: BDH-A11
Material: Carbon steel
Surface finish:black/dark coffee powder coating or other color as required
Load bearing: 175kgs
Application: interior/exterior wooden doors for living room/store room/veranda/laundry.etc
Single/double open wooden door
Rail/track length: 2m/79" standard or as customized
Door thickness : 1 3/8" --1 5/8" (35-45MM)
Door width:31 1/2" --39 3/8"
Packing:2055*115*80/set
Warranty: 3--5years
Track length&door width Match: 1500mm track--under 750mm door
1800mm track--under 900mm door
2000mm track--800-1000mm door
3000mm track(1500+1500)--1500mm door
| ITEM | Qty | Material&Surface |
| Sliding Track(Length can be customized.) | 1*2mm | Carbon Steel +black powder coating / painting |
| Sliding Rollers | 2 | Carbon Steel +black powder coating / painting |
| Door Stops | 2 | Carbon Steel +black powder coating / painting |
| Wall Mounts &Screws | 5 | Carbon Steel +black powder coating / painting |
| Anti-Jump Disks | 2 | POM |
| Floor Guide | 1 | POM |
| Door Handle(not included in the kit) | 1 | Carbon Steel +black powder coating / painting |
New door stop with damper
we already developed a new technology model,New door stop with damper, which replacing the original door stop and original Anti-jump.Technology is more advanced,the structure is more closely,we'd like to highly recommend this model to you,Pls have a try in your local market, if possible.

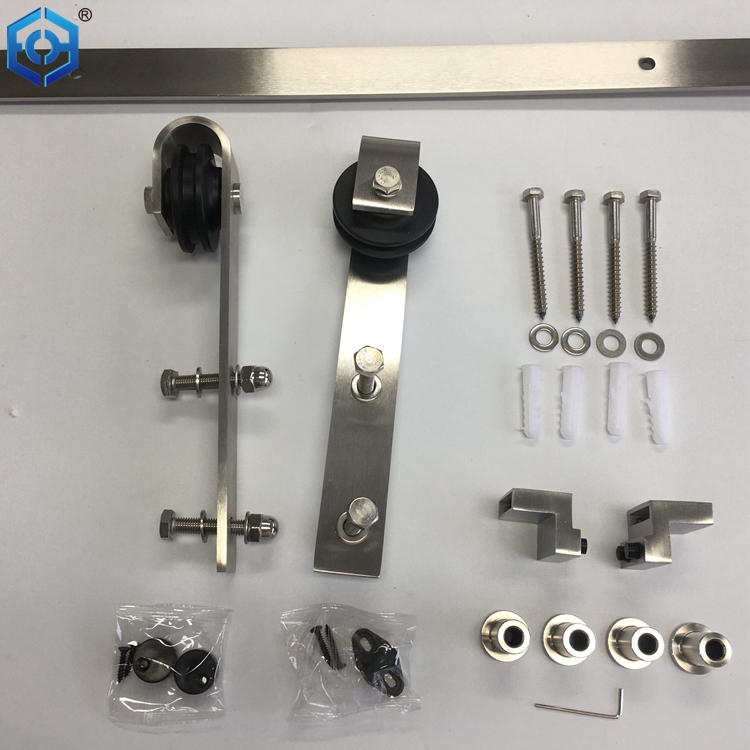

Product Picture:
