Solid Forged Brass Handleset Keys Entry Handleset Mechanical Door Lock

Material: Zinc alloy
Size:420x65MM
mortise lock size:60/70mm
Quantity:
  • 8625
  • ECH


Product

Solid Forged Brass Handleset Keys Entry Handleset Mechanical Door Lock

Product Description
 manufacture Fingerprint And Keypad Door Locks,Lock Cylinder,Hotel Door Lock,Mortise Door Lock,Keypad Door Lock,Key Card Door Lock,Remote Control Door Lock,Electronic Door Lock,Intelligent Door Lock,Digital Door Lock,Lock body,Hardware Accessories,Handles and over twenty years experience.



General  specification


Model No.:   8625
Application: Many kinds of wooden door and metal doors.
Trim: Made by Solid zinc alloy die-casting, raw material is from torch brand, top grade in China.
Latch:   Solid brass tongue, high quality steel casing, precise mechanism inside, strong and durable.
Bolt: Solid brass tongue, high quality steel casing, precise mechanism, hardened steel big rod inside for anti-saw purpose, smooth working, strong and durable.
Backset of Latch and Bolt: Standard 2-3/8”(60mm), Optional 2-3/4”(70mm).
Cylinder:  The most components are made by brass, processed with highly precise CNC machines, hardened tail-piece for durable purpose, with construction key function.
Standard keyway:Double-row-pin, 10 pins, higher secure level. (Each set with 5 pcs owner’s key + 1 pc construction key)
Customized keyway
Supplying function: Entrance, Dummy, Two-open Door.
Available type of inside trim: Type A, Type B, Type C, Type D, Type E, Type F.
Door thickness:  Standard 38-52mm
Supplying finish:  AB (US 5) – Antique Brass
SN/NP – Satin Nickel / Nickel Polished
SG/GP – Satin True Gold / True Gold Polished
ORB (US 10B) – Oil Rubbed Bronze
SN/GP – Satin Nickel / True Gold Polished
Package:   High quality color box.
Carton: 6 sets/carton

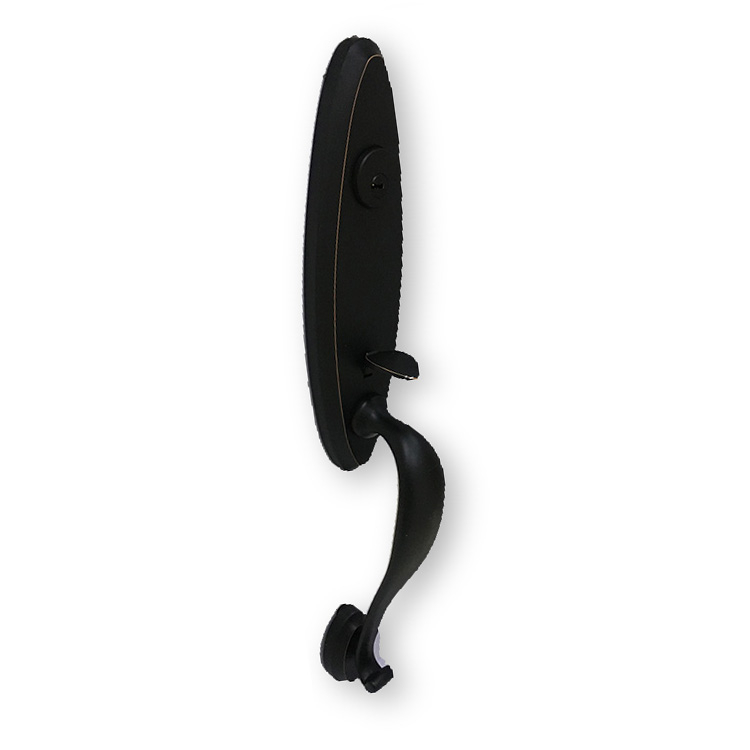

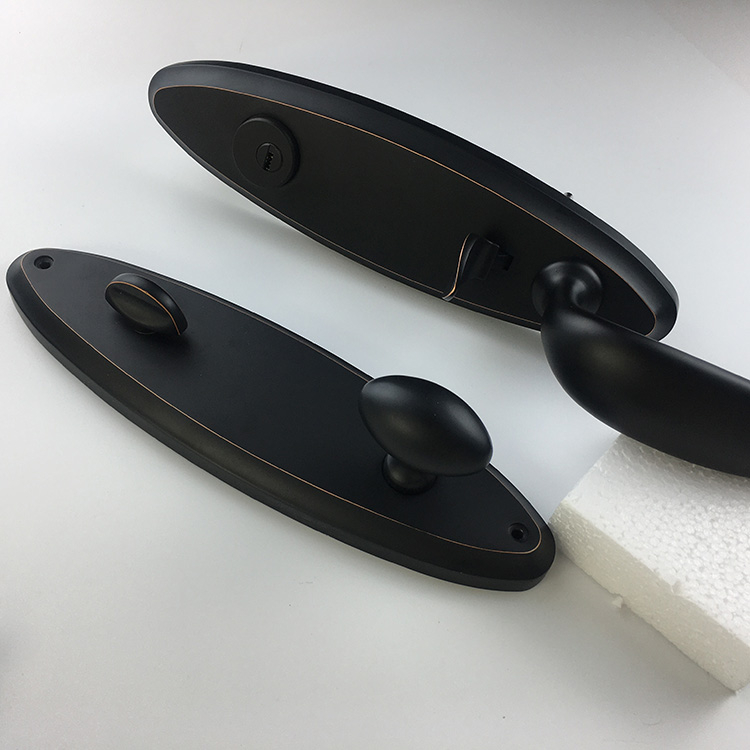

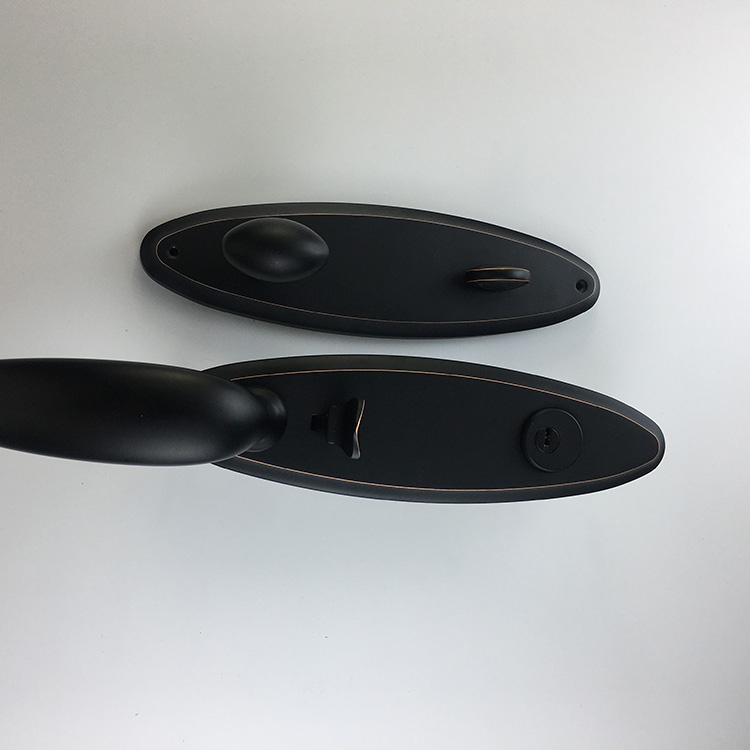

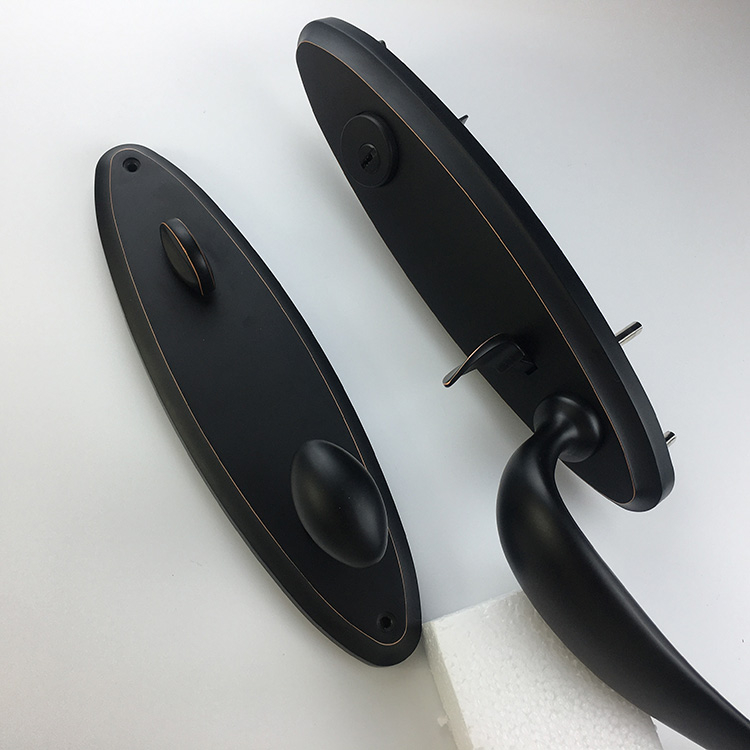

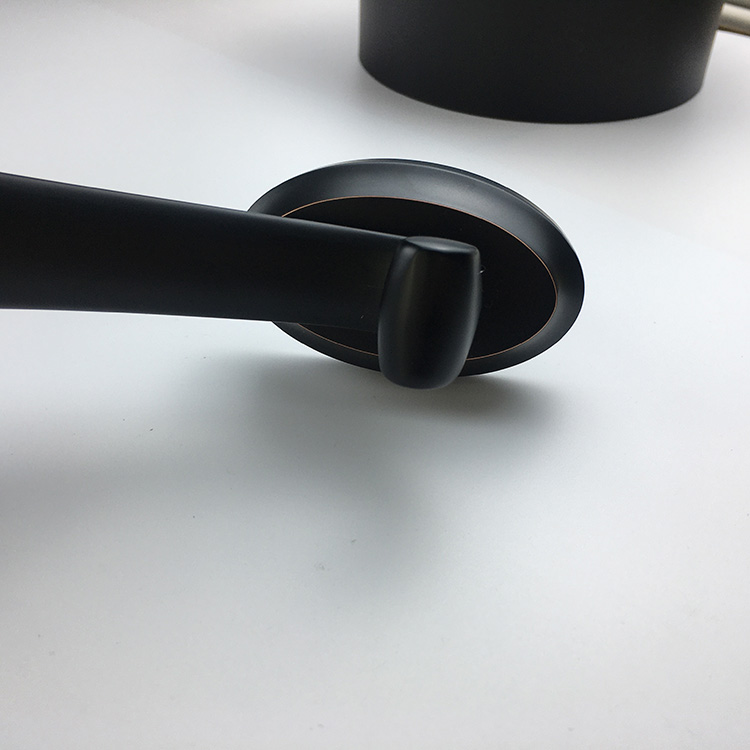

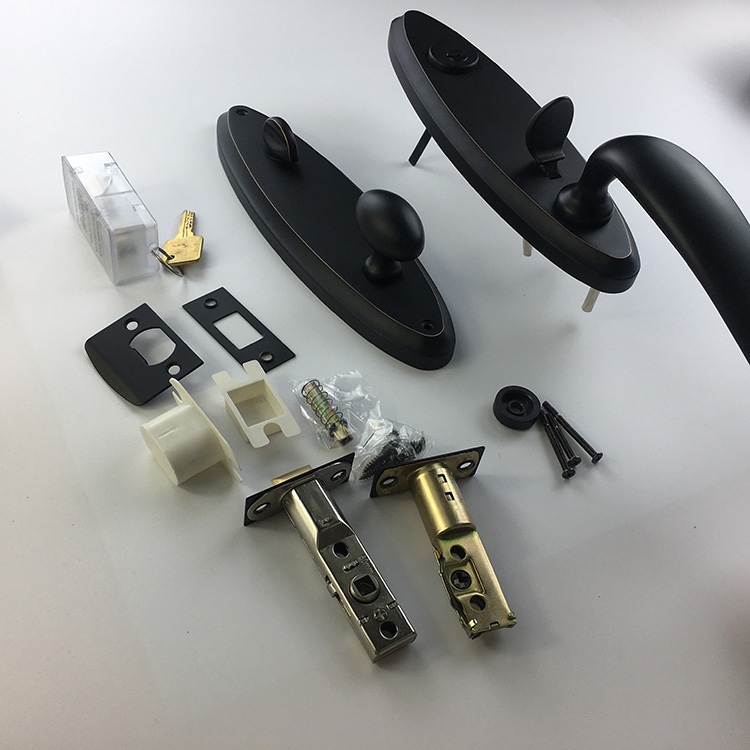

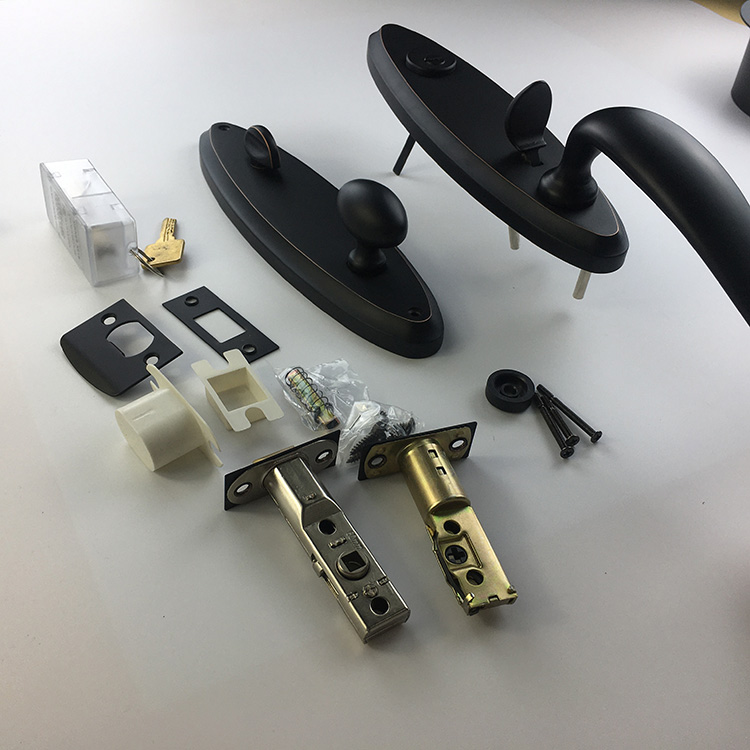

Product Picture:

best deadlock for front doorlockwood mechanical entry locksetexterior door knob and deadbolt setshandleset for front doorbest entrance door lockstouchpad front door lockschlage entry doorschlage entry handleset

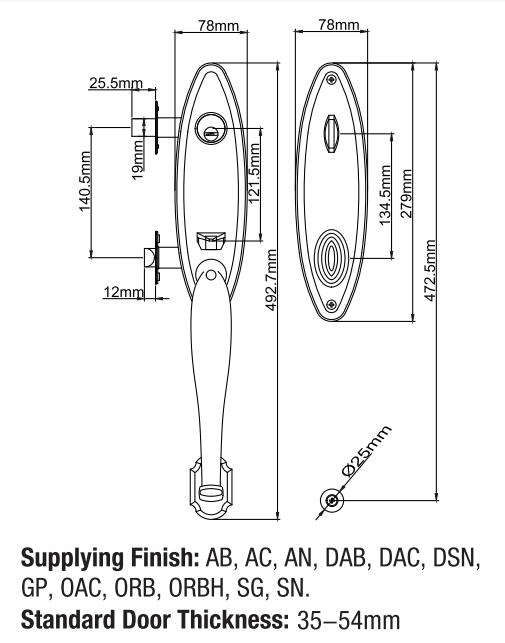

Product Size Picture:

deadbolt locks on exterior doors

Main Specifications:

  • Artistic design,overturning the old fashion of similar products,make your etrance doors more personalized and beautiful.

  • Apply to all kinds of wooden doors and metal doors.

  • Tubular Type.

  • Anti-cut for bolt for securer purpose.

  • Easily installation and reversible for left & right handing.

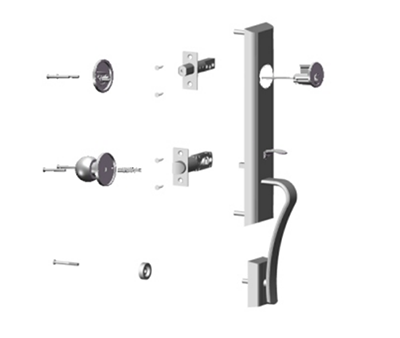

Assembly illustration:

samsung smart keyless deadbolt digital door lock

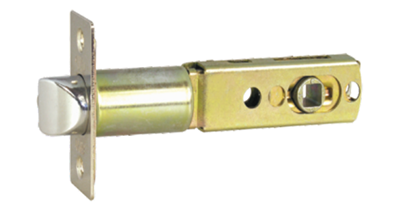

Latch

  • Latch tongue is made by zinc alloy die-casting.

  • High quality components inside to ensure good mechanism.

  • Backset:60mm(2-3/8")-70mm(2-3/4")adjustable.

samsung smart keyless deadbolt digital door lock

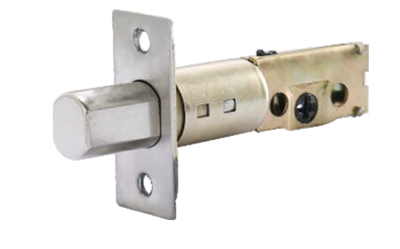

Latch

  • Bolt tongue is made by zinc alloy die-casting.

  • Big hardened steel rod inside for anti-saw and securer purpose.

  • High quality components inside to ensure good mechanism.

  • Backset:Standard:60mm(2-3/8")   ,Customized:70mm(2-3/4")

combination front door locks

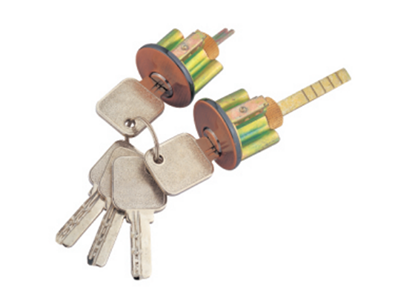

Cylinder

  • Zinc alloy housing+Solid brass plug(Core)+Brass pins.

  • Normal key(Thickness 2.2mm) or Computer key (Thickness 2.5mm) for option.

  • Number of Pin combination (Key Cut) is over interational standard ,make your home secure.

cylinderschlage exterior door knobs

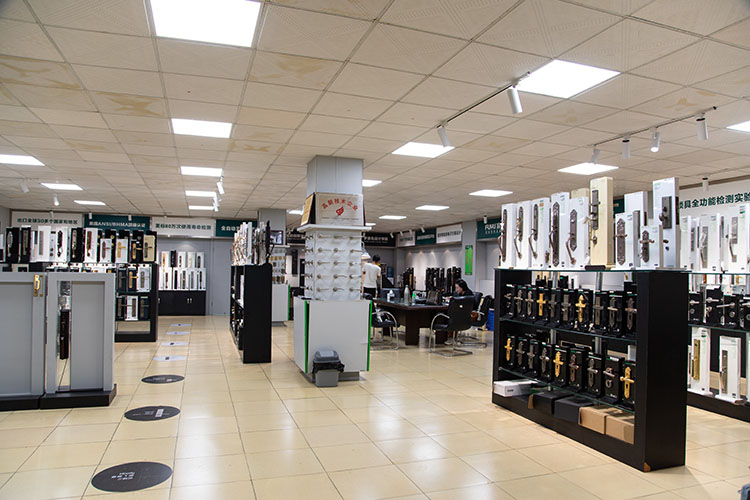

Show room:

Show Room

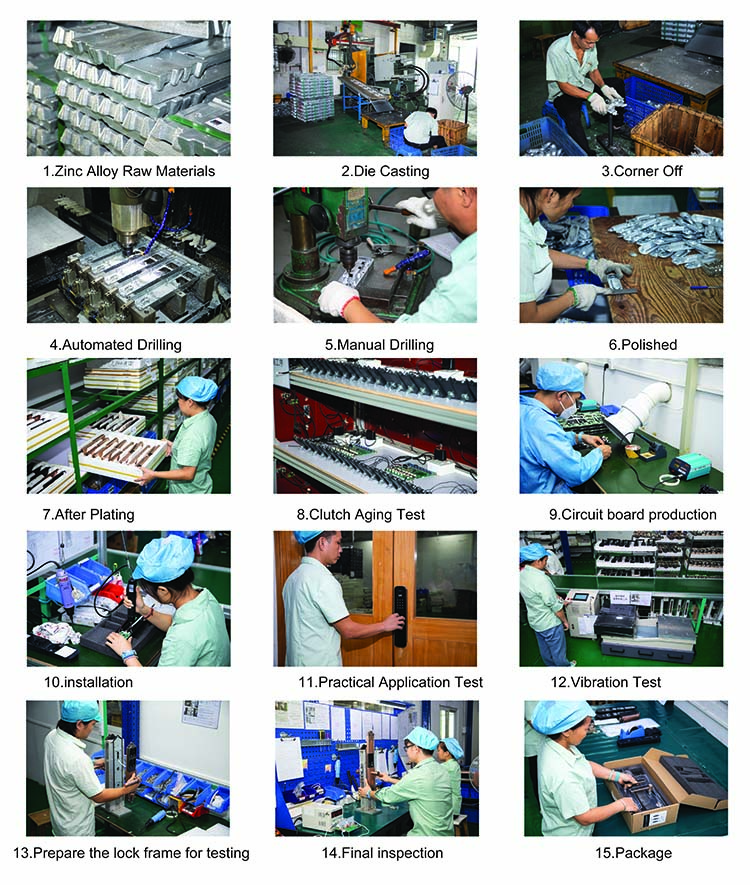

Product Process:



Product Process

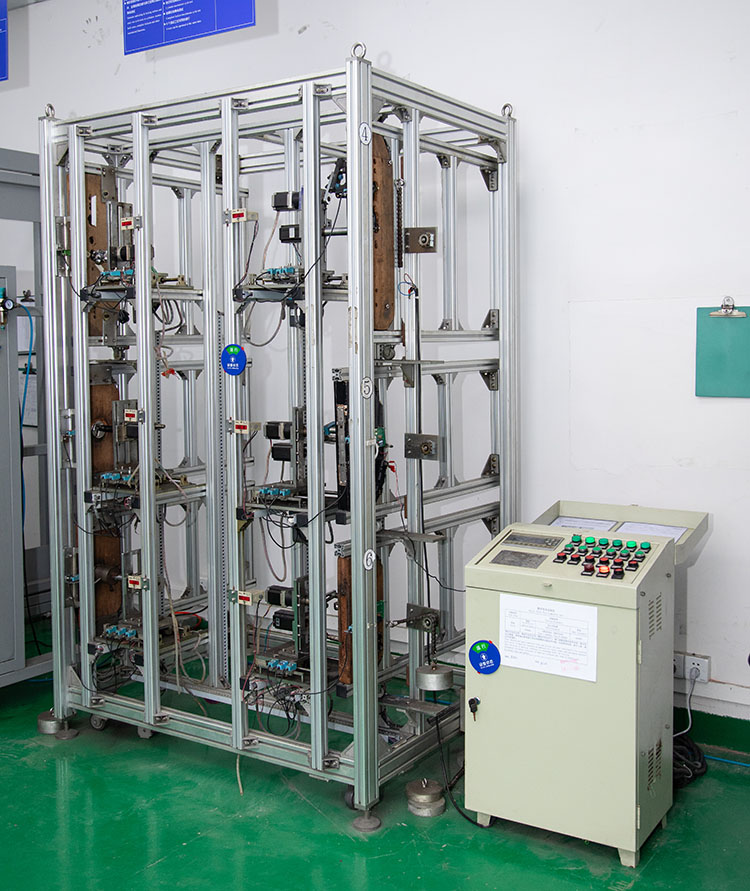

Multiple Cycle Test For Complete Set(Max.test 16 sets at the same time)

Multiple Cycle Test For Complete Set(Max

push button door lock
