Security Stainless Steel Passage Marine Fire Door Lock

Security Stainless Steel Passage Marine Fire Door Lock
distance:
55mm
mortise lock size:
90x84mm
plate size:
140x25mm
Availability:
Quantity:
Inquire Add to Basket

Security Stainless Steel Passage Marine Fire Door Lock
Security Stainless Steel Passage Marine Fire Door Lock
Security Stainless Steel Passage Marine Fire Door Lock
Security Stainless Steel Passage Marine Fire Door Lock
Security Stainless Steel Passage Marine Fire Door Lock
Security Stainless Steel Passage Marine Fire Door Lock

  • LS011-R

  • ECH





Door lock



Suitable for both right-handed and left-handed opening doors

Apply to all kinds of wooden doors and metal doors

High security cut resistant stainless steel bolt

Easy to install; open and close flexibly

Professional design and high quality

Sturdy and durable



Product Description



Specification

Security Stainless Steel Passage Marine Fire Door Lock


Brand

ECH

Item No.

 LS011-R

Apply

Wooden door, metal door

Material

Stainless steel  or to order

Finish

 PSS/SSS to order

Lock body

stainless steel 55mm

distance

55mm

Package

white/color box/blister, standard export carton

Delivery

30 working days


Application

  • Meets all fire class requirements

  • Suitable for corrosive environment

  • The center distance from the front plate to the handle is 115mm

  • Antifriction latch bolt

Operation

  • Antifriction latch bolt is operated by handles

Material：SS304，SS316

Finish: Polish, Stain,Gold chrome

Direction:L.l;L.O;R.I;R.O

Door Thickness：38-42mm，can be customized

Weight：1200g

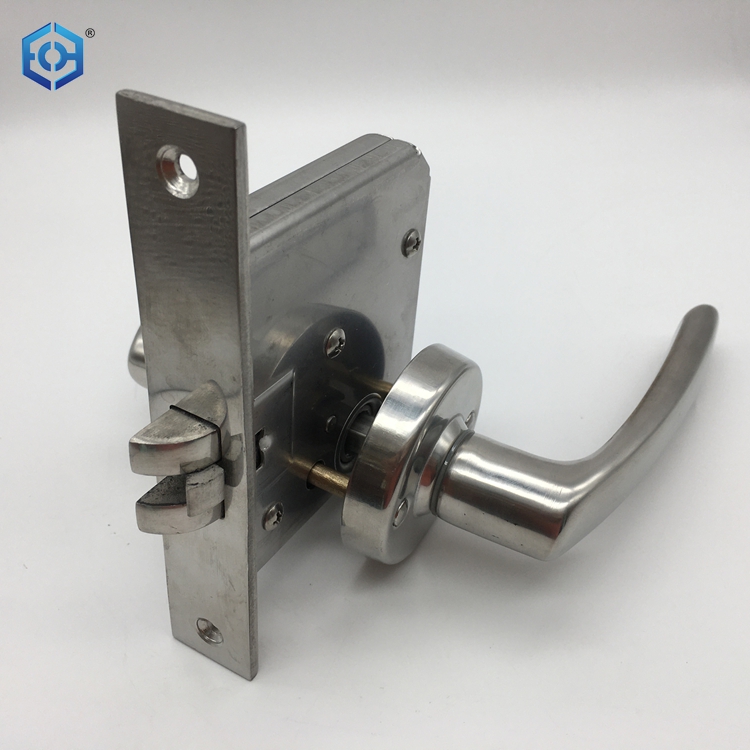

Product Picture:

boat door latchmarine locks and latchesboat hatch locksboat cabin door lockboat door lockmarine door latchesboat latch lockboat cabin door latch

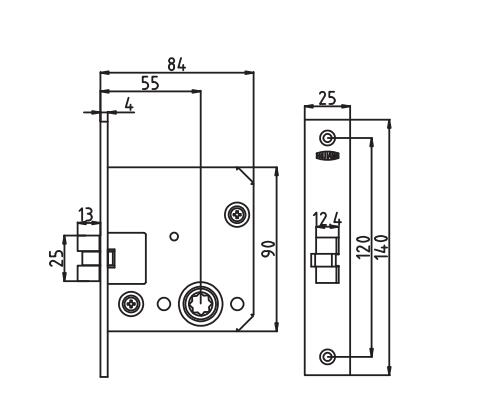

Product Size Picture:
