commercial door pivot hinge adjustment
The more quantity, the lower the price
Type: pivot door hinge | Place of Origin: Jiangmen China (Mainland) | Brand Name: ECH |

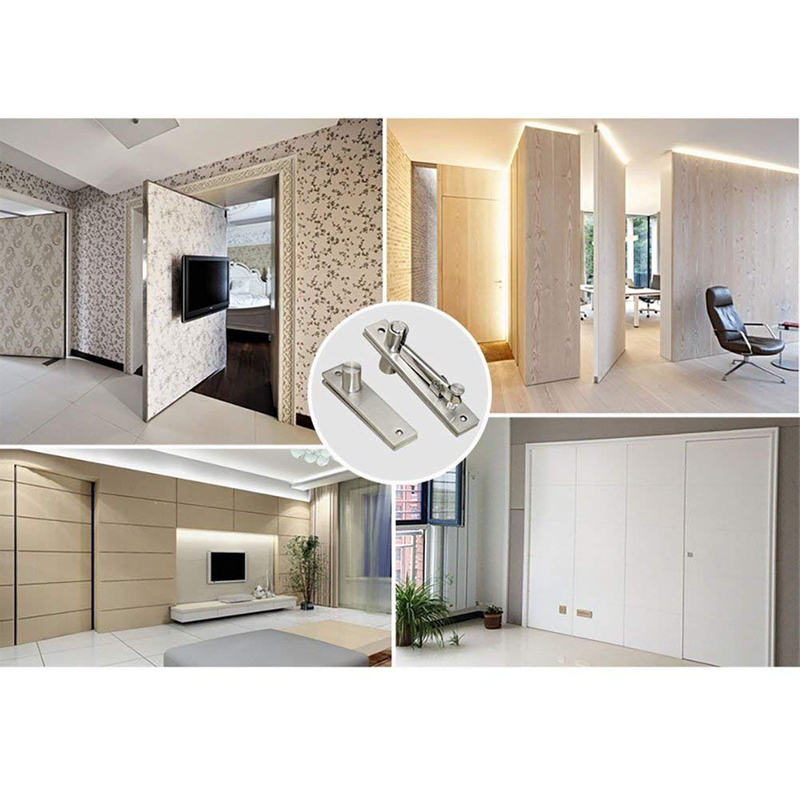

Application: furniture & door |
Material : Stainless steel |
Model : EH688 |
Name: pivot door hinge |
Function | pivot door hinge |
| Opening angle | 360 degree |

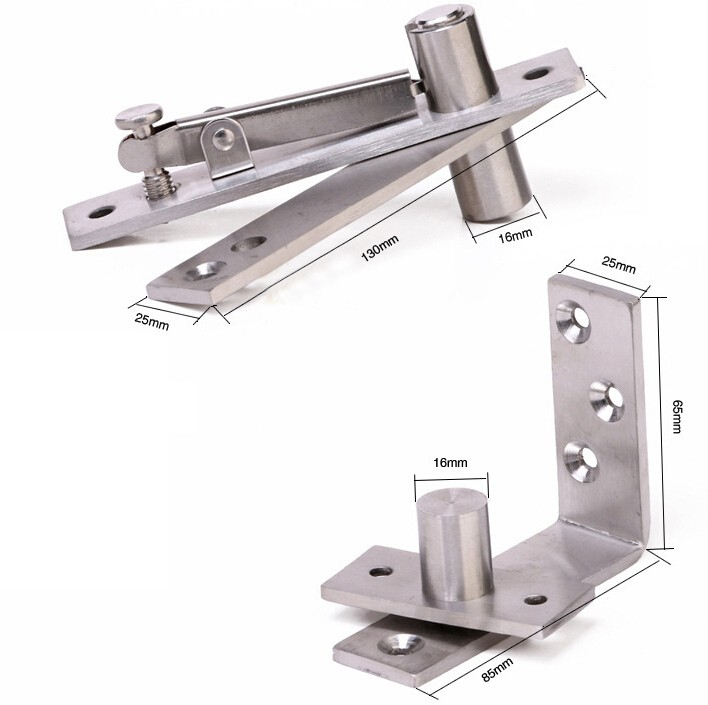

| Size | 130*25*16mm |
| MOQ | 1000 Pairs |
Standard export package | White box, Soft foam plastic bag or to order |
Inner packing | Soft foam plastic bag , color box and blister packing |
Delivery | 30 working days |
STYLE 1：
Product picture
STYLE 2：
STYLE 3：
STYLE 4：

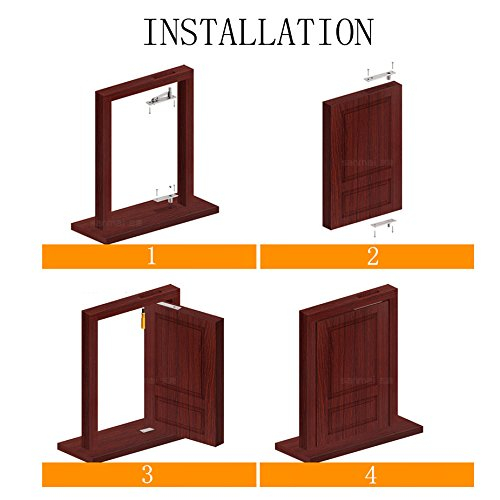

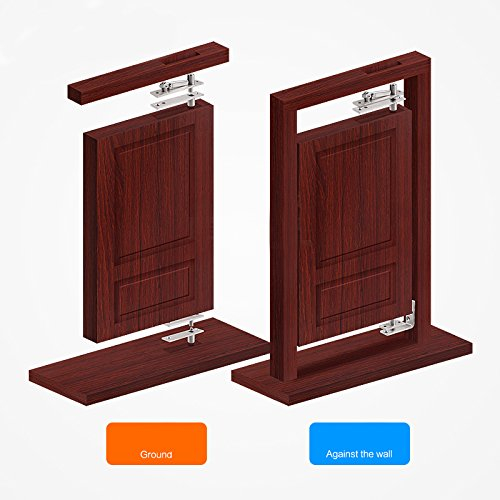

install：
1.Move the door to the door frame and make sure the φ10 cylinder of part （3） is in the φ16 round tube of part（4）. And make the φ12 cylinder of part (1) correspond with the φ18 round tube of part(2).
2.Adjust the adjust the adjusting screw of part(1) upwards with a slot type screwdriver so that the cylinder of φ12 protrudes into the φ18 round tube of part(2).
3.Rotate the door spindle . If it is smoothly and noiselessly when rotating ,fix the screw further ,Then the installation is finished.
4.If it is not smoothly when rotating , slightly adjust the position of part (3) or part (4) and make it more smoothly.
