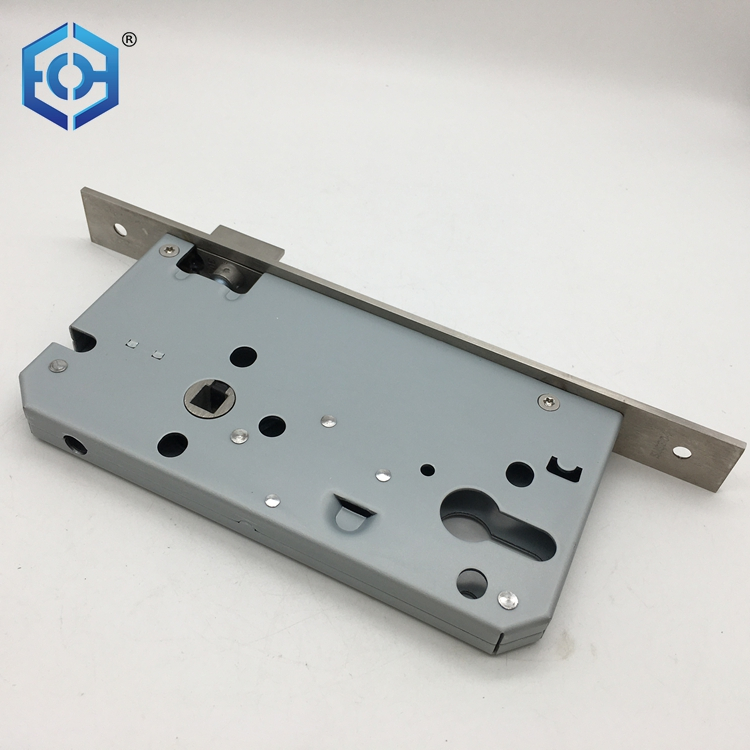

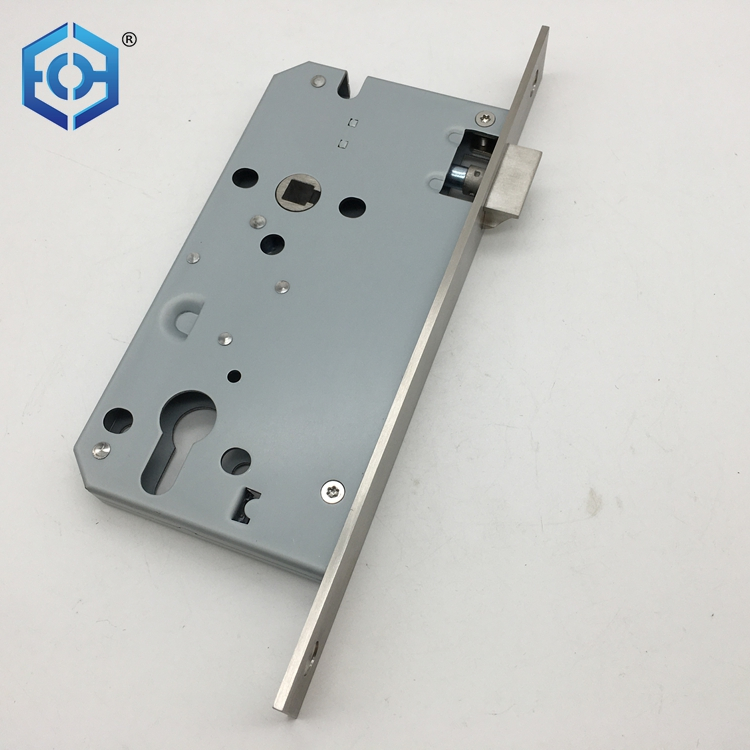

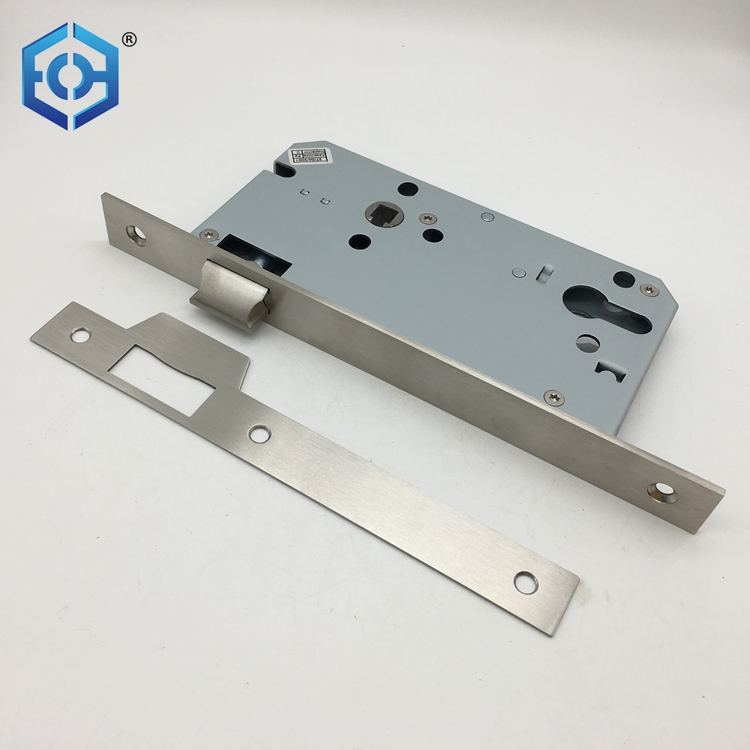

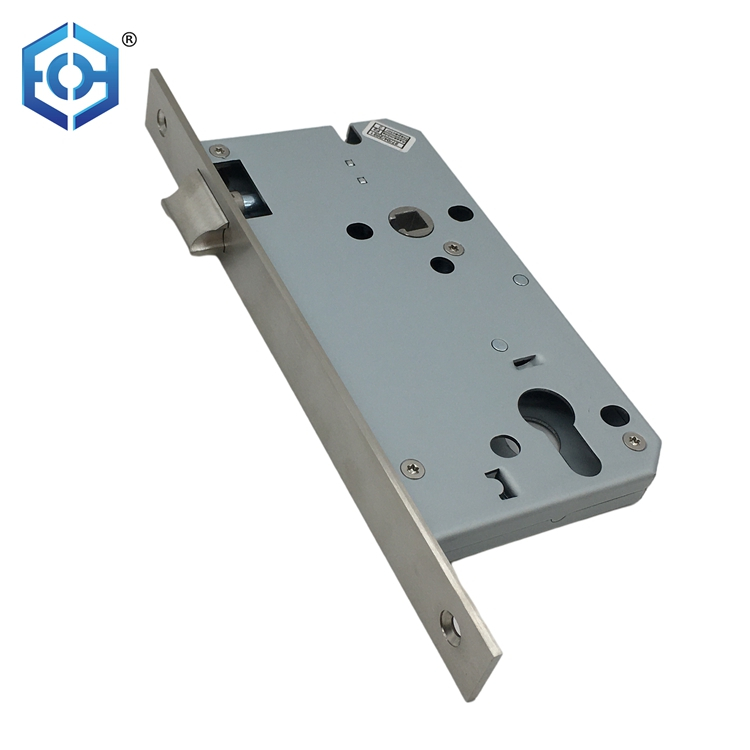

High Security Square Head Standard European Lock Body 55 / 72 Mm Mortise Door Lock Body

High Security Square Head Standard European Lock Body 55 / 72 Mm Mortise Door Lock Body
Quantity:
  • MLE009
  • ECH

High Security Square Head Standard European Lock Body 55 / 72 Mm Mortise Door Lock Body

product Specification

Quick Details


1. Distance:72mm,Backset:55/60/65mm

2. Lock shell:zinc steel SECC,thickness:1.5mm

3. Latch bolt:SUS304(Durability: 200,000 test cycles, 120N side pressure)

4. Front Plate:SUS304,Size:240*24/22/20mm,thickness:3mm,Strike plate:SUS304,thickness:1.5mm

5. Spindle:SUS304,Hole size:8*8mm

6. Performance in line with European standard EN12209,size in accordance with European standard DIN18251, CE certification level (EN12209): 3x910G-BC020
Fire resistance test (standard EN1634-1): 260 minutes (steel door),wooden door 111 minutes (wooden door)




Place of Origin: Guangdong, China (Mainland)
Brand Name: ECH

Model Number: MLE009

Usage: Door, Window

MOQ: 500 PCS
Delivery: 30 working days
Pacakge: White box, Soft foam plastic bag or to order


Packaging & Delivery
Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days


Specifications
 mortise lock
]1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish



Welcome to ECH
Welcome a trial order (small quantity no problem)
If you want more style, please contact us at any time!


Specifications:


Type: mortise lock
Brand Name: ECH
Place of Origin: Jiangmen China (Mainland)
Model Number: MLE009
Material: Stainless steel or to order
Process: assemble
Application: Door
Finish & Size: SSS Distance :72mm backset:55/60/65mm
Standard export package: White box, Soft foam plastic bag
Delivery : 30 working days

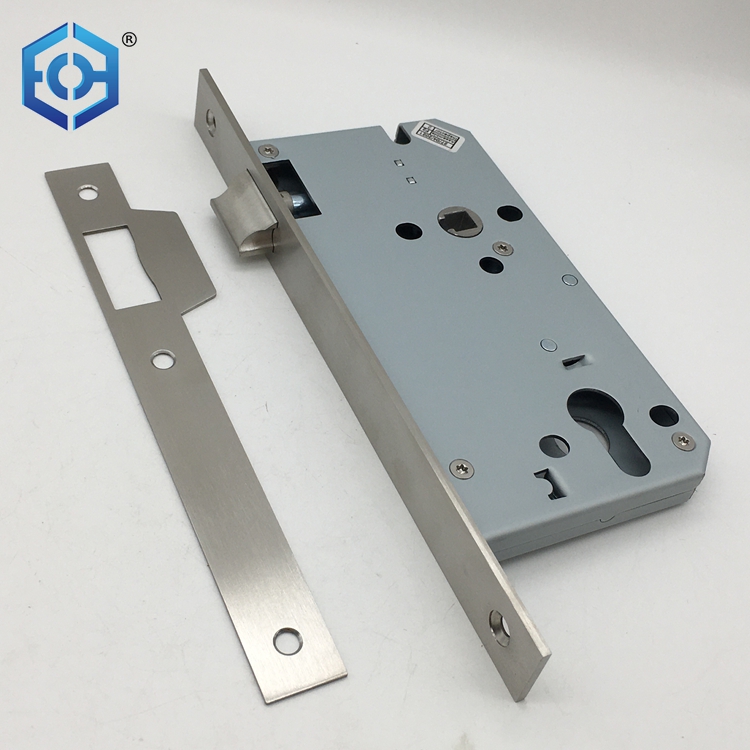

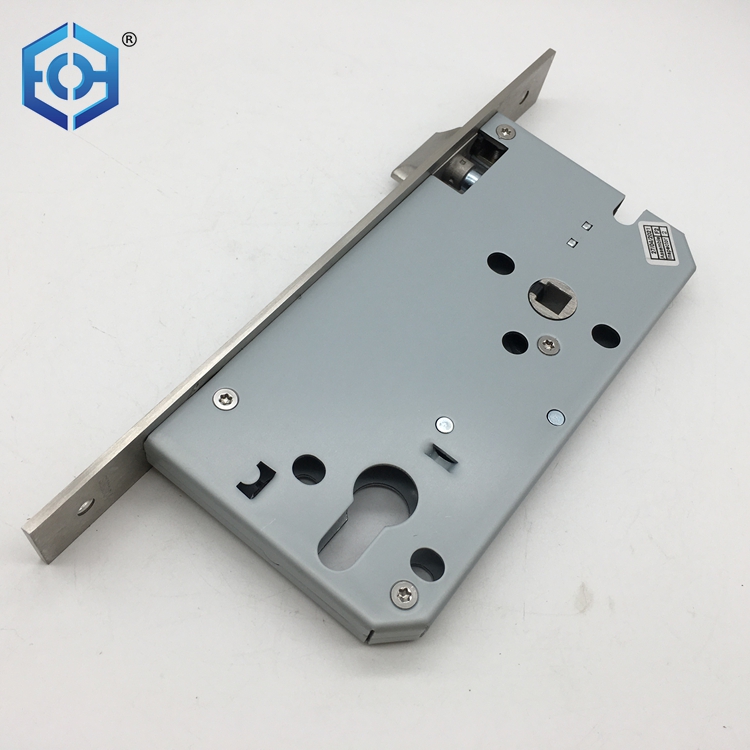

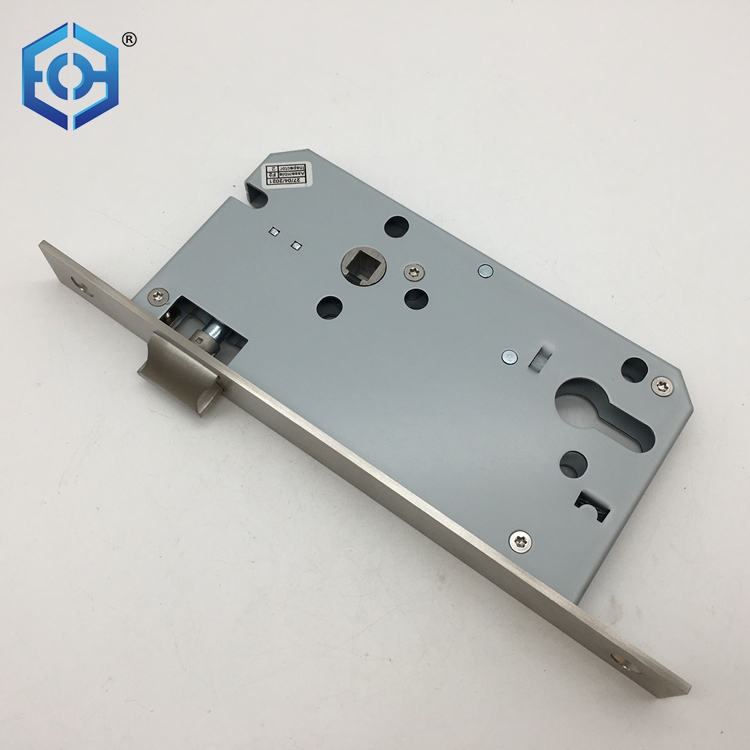

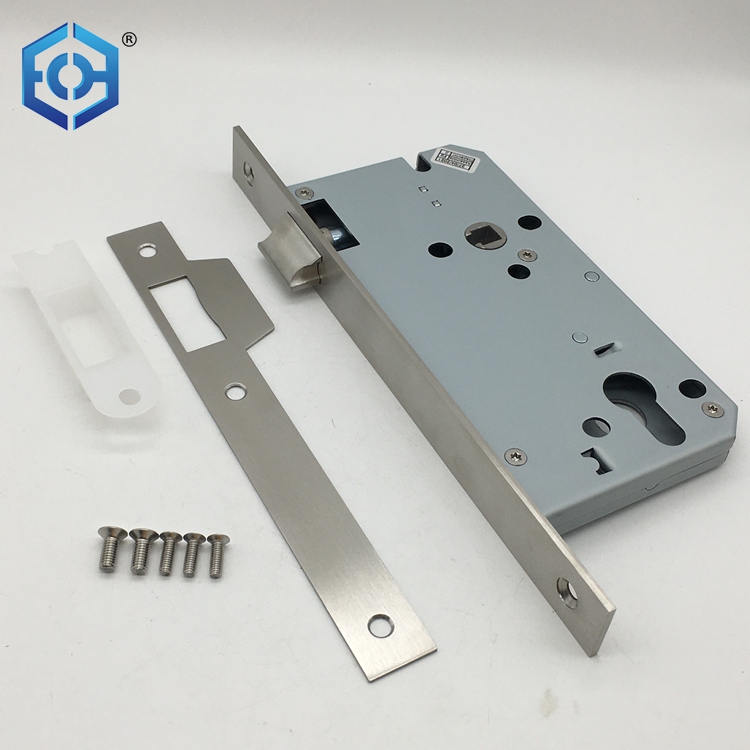

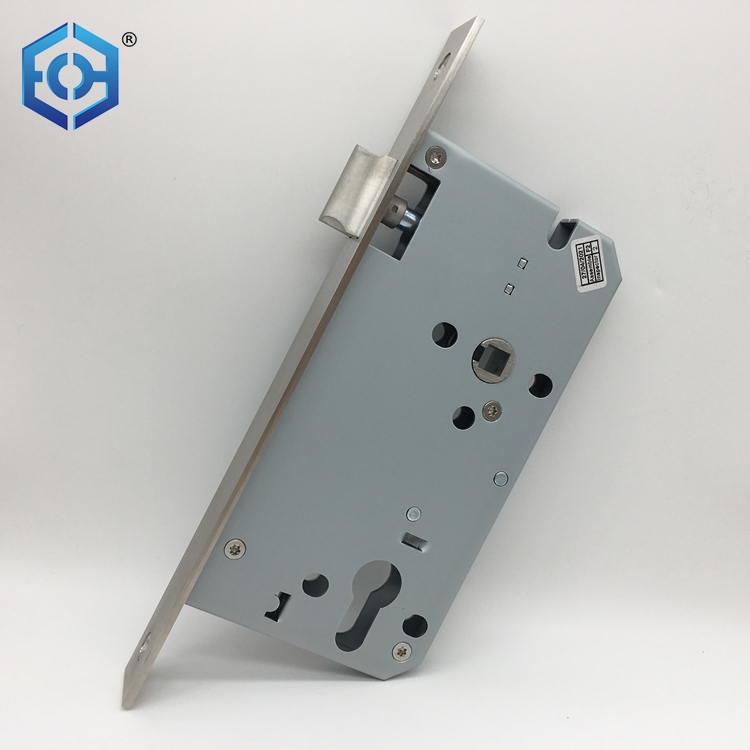

product picture

combination door lockmailbox lock

shed locksinternal door locksbathroom door locksmortise deadbolt lockfront door lockskeyless door locksliding glass door lockssafes



product size picture

remote door lock

lock pick set


fsb mortise lock
