Product

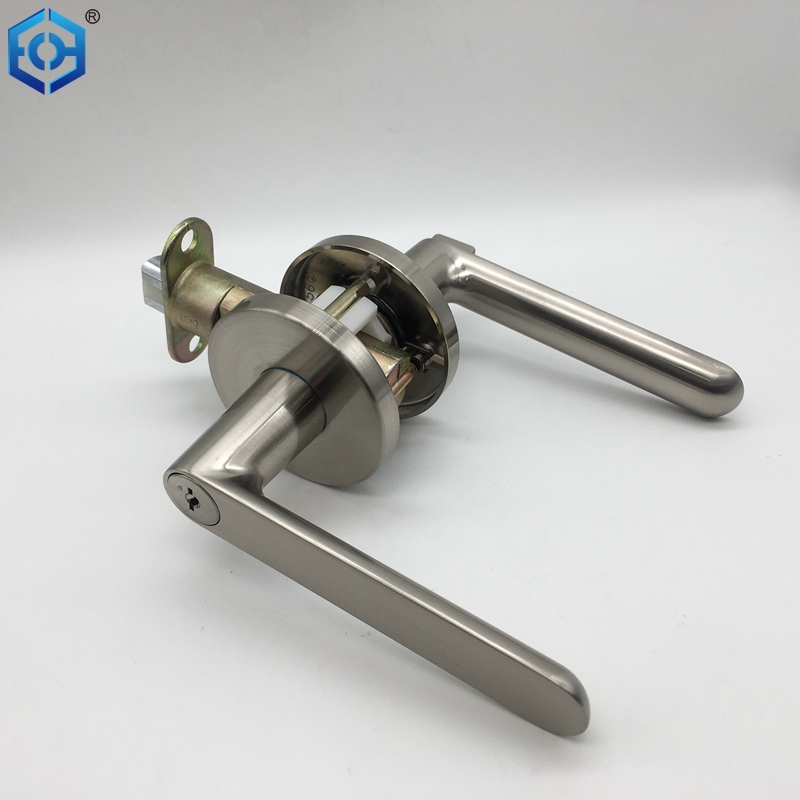

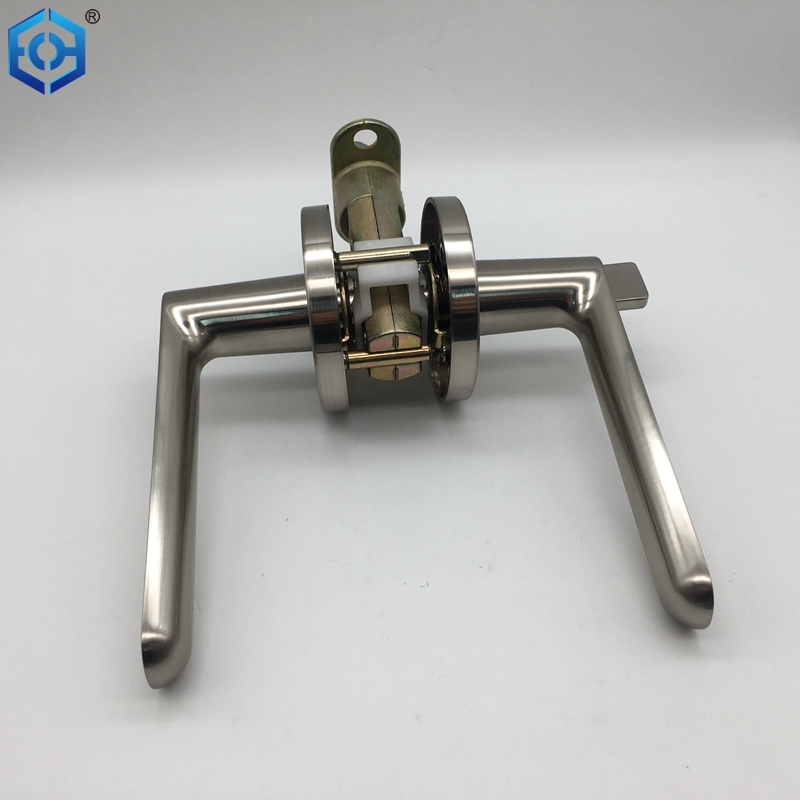

Heavy Duty Door Handles Satin Nickel Finish Keyed PrivacyPassage Dummy Door Lock Levers
Cover: optional with diameters of 55MM and 65MM
Model: WD5602T-ET60
key: 3 nickel plated copper key
Grade: ANSL level 3 standard gate
Gusset plate: 304 stainless steel
Material: zinc alloy
Door latch box: high-grade rubber
lock core: leaf lock core
Face treatment: SN,SSS, Black (10B), AC,AB, etc
Door margin: 60MM
Functions: room locks, sanitary locks, access locks, decorative handles, etc
Suitable for door thickness: 32MM- 51MM
Screw: 4 stainless steel 304 screws
Locking tongue: 60MM and 70MM adjustable
Warranty period: 5 years mechanical function warranty
General specification
| Type | Lever door lock |
| Model NO | WD5602T-ET60 |
| Brand name | ECH |
| Materal | Zinc Alloy |
| Finish | SN or to order |

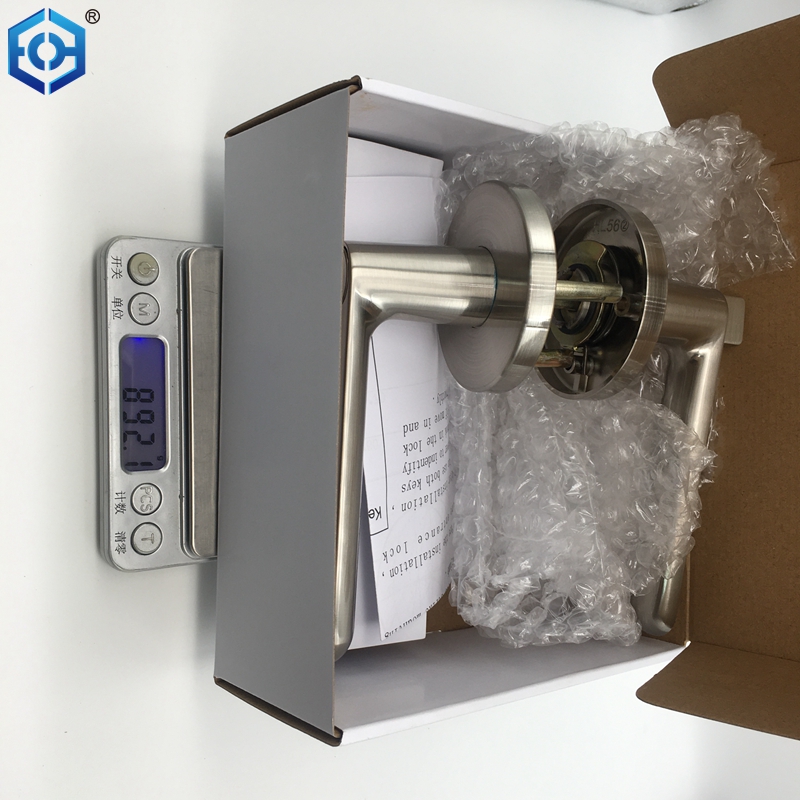

Packaging
Packaging design: white box and color optional, customizable packaging design.
Unit gross weight: 1.20kg/box.
Unit net weight: 1KG/ piece.
Packing details: 20 pieces/per carton
Inner box size: 18CM* 15.50cm *7CM
Case size: 38CM*33CM*37CM
Product features and installation instructions
