By-passing Classic Strap By-passing Wood Door Kit Bypass Sliding Barn Wood Door Hardware Black Rustick Barn Sliding Track Kit

Hex Bar Modern Sliding Hardware barn door hardware long

Quantity:
  • BP-A02
  • ECH

Model number: BY-A02

 Single Track Bypass© Barn Door Hardware Kit with 78" Track
allows two doors to hang and bypass/overlap on one track!
(NOTE: doors are NOT included)

Double Door Bypass Steel Sliding Barn Door Hardware Roller Track Kit 78'' Rustic Farmhouse

NOTE: FOR MOST APPLICATIONS AND TO GET THE MOST COVERAGE,
MOUNT THE HANGERS AS CLOSE TO THE EDGE OF EACH DOOR AS POSSIBLE!
DOORS NEED TO BE A COMBINED 6' WIDER THAN YOUR OPENING FOR COVERAGE.

Double Door 78'' Bypass Sliding Single Track Barn Door Hardware Kit

If you need other track length, please choose our other style kit - Single Track Bypass©

 78'' Track length ships without joints - Single Track Bypass© Sliding Barn Door Hardware Set comes with all necessary hardware for hanging the door that can transform your doorway into a side sliding entry.

Kit features sturdy and durable construction. Space saving and easy installation. This is a popular new way to bring innovation into the home and close off bedrooms and side rooms in a fashion way.

Works for doors 30" to 40" using adjustable end stops!

Features:

  • One-piece 78'' long sliding single track without splice

  • Predrilled - evenly spaced holes on track - NOTE: holes may not line up with your studs - best to use when you have solid header

  • Black Powder coated carbon steel construction, sturdy and durable

  • Smooth, silent and effortless operation

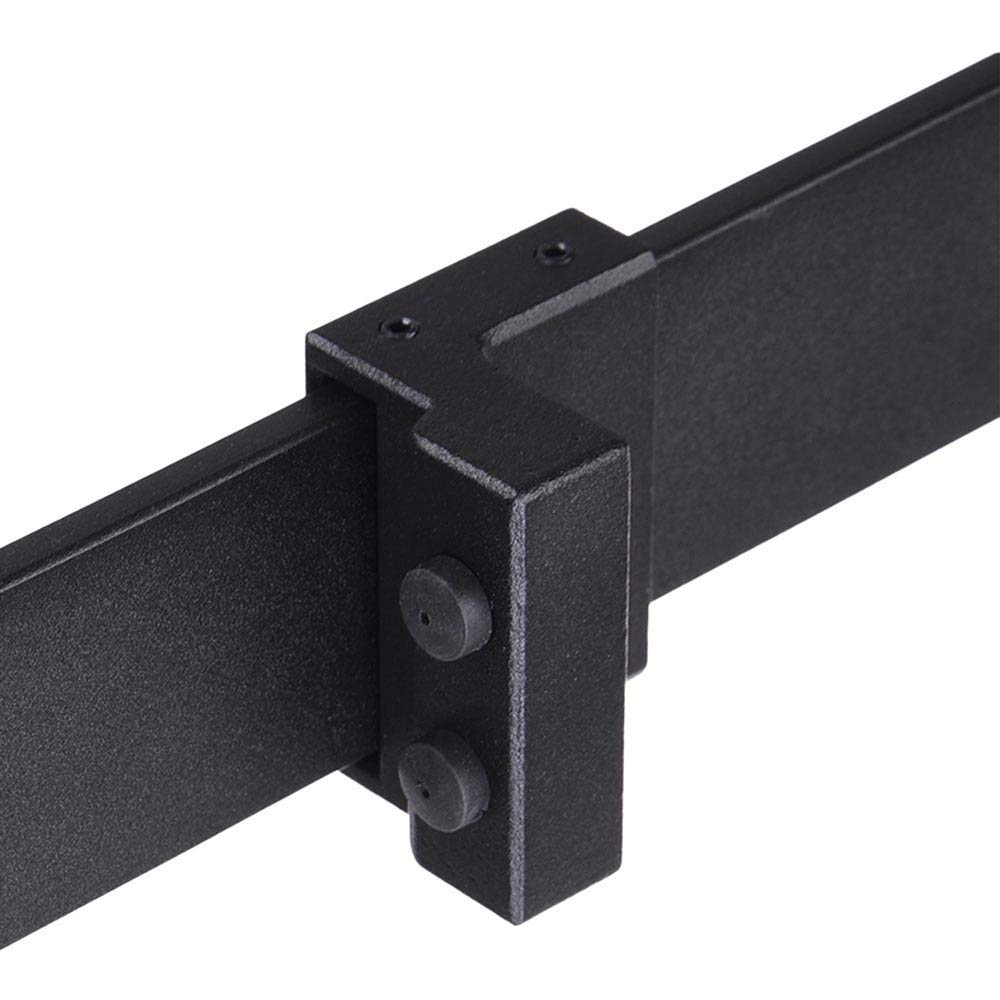

  • Roller stopper to prevent excessive sliding

  • Strong floor guide to stabilize door movement

  • Anti-jump to prevent rollers from jumping off the track

Specifications:

  • Material: carbon steel

  • Sliding Track Length: 78''

  • Door Weight Capacity: 265 lbs

  • For use with openings up to 40" each door

  • ONLY WORKS with Door Thickness: from 1 3/8" to 1 9/16"

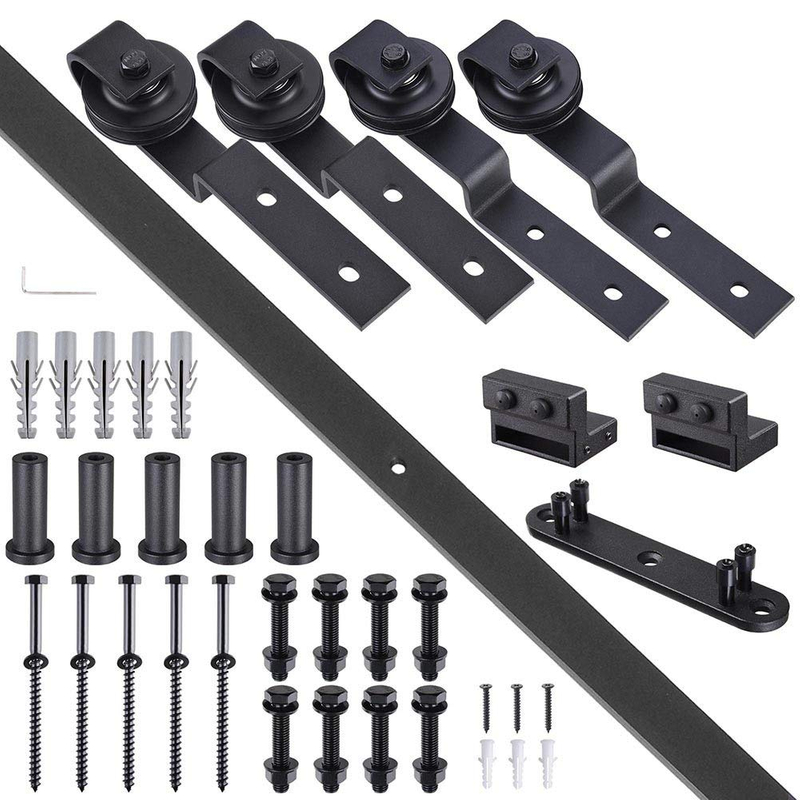

Package Contents:

  • 1 x 78'' Sliding Barn Door Track

  • 2 x Door Stoppers

  • 5 x Wall Hangers

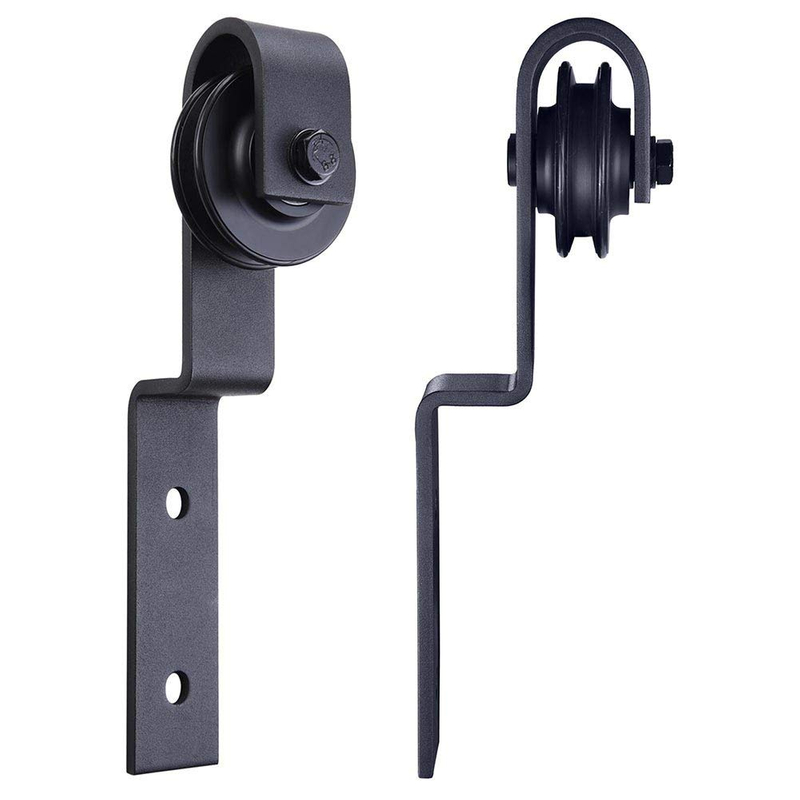

  • 2 x Inner Single Track Bypass© Barn Door Rollers

  • 2 x Outer Single Track Bypass© Barn Door Rollers

  • 1 x Floor Guide

  • 2 x Anti-jump Disks

  • 8 x M10 x 55 Bolts for doors 1 3/8" to 1 9/16"

  • 8 x M10 Nuts

  • 1 x Set of Accessories

  • 1 x Manual



Products Show
By-passing Classic Strap By-passing Wood Door Kitbypass Sliding Barn Wood Door Hardware Black Rustick Barn Sliding Track Kit  in Home & Garden, Home Improvement, Building & Hardware Single Track Bypass (Double Door)

Bypass barn door hardware easy to install canadaSingle_Bypass_78_Instructions3__83195.1543535330Single_Bypass_78_Instructions2__78485.1543535330

New  door stop with damper

we already developed a new technology model,New door stop with damper, which replacing the original door stop and original Anti-jump.Technology is more advanced,the structure is more closely,we'd like to highly recommend this model to you,Pls have a try in your local market, if possible.
