Bi Folding Door Hardware for Cabinets Or Wardrobes
Specification
▶Technical Specifications
Product Features
①Multi point connection combination,
②Easy installation
Technical Parameterfully open
Material:Zinc alloy,plastic
Maximum load:25 KG
Door width:400-600mm
Door height:max 2600mm
Door thickness:18-40mm
Main use:wardrobe wooden door
▶Key Components of a Sliding Door System
1. Door Panels: The actual doors, which can be made from glass, wood, composite, aluminum, etc.
2. Track (or Rail): The metal guide mounted above (and sometimes below) the door that the rollers travel on. It must be strong enough to support the door's weight.
3. Rollers / Hangers: The wheel assemblies attached to the top (and sometimes bottom) of the door that allow it to glide smoothly along the track.
4. Handles and Pulls: Used to operate the door.
5. Locking Mechanism: For security on exterior doors or privacy on interior ones.
6. Stops: Prevents the door from sliding off the end of the track.
7. Guide / Floor Guide: A small piece on the floor or lower track that keeps the bottom of the door from swinging in and out.
Product NO:ECYG-1
Product Description:Bifold Door Hardware
1. Main Material: Zinc alloy,plastic
2. Finish: Silver Anodization
3. Rail Length: Customized (normally 1000mm)
4. Max Loading: 25kg with soft closer
5. Durability: 100000 workcycles
6. Suitable for residential use.
7. Soft closing included
Packing Method
Each set into a Carton as a sales unit(1 set/ctn), then proper quantity a wooden pallet.
EXW, MOQ 112 sets Due to frequent fluctuations in raw materials and exchange rates, the price is subject to final confirmation before ordering
| Type | Bifold Door Hardware |
| Brand name | ECH |
| Model NO. | ECYG-1 |
| Material | Zinc alloy,plastic |
| Finish | satin zinc or to order |
| Max door weight | 25KG |
| Door thickness | 18-40mm |
| Door width | 400-600mm |
| Inner packing | soft foam pastic bag,color box and blister packing |
| Standard export packing | one piece in one plastic bag,one pair in one white box ,20 pairs in one carton |
| Delivery day | 30 working days |
— Limited number of parts for easy installation.
— The two-way damper allows doors to be both opened and closed softly.
— No bottom rail or floor groove is necessary.
— Improved adjustments for a perfect result.
— Doors will be flush with walls when closed.
— Door can be pushed open and no handle is necessary on the door front.

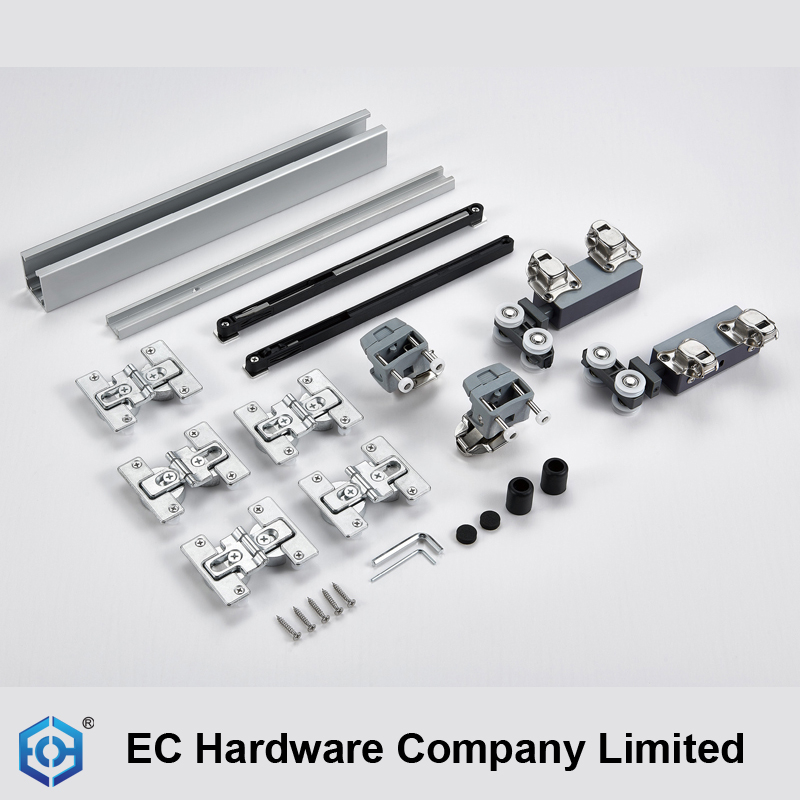

Product picture
