American Style Stainless Steel ANSI Mortise Door Lock Complieswith ANSI/BHMA A156.36 Standards

American Style Stainless Steel ANSI Mortise Door Lock Complieswith ANSI/BHMA A156.36 Standards

Welcome a trial order!

Contact us at any time!

General  specification

ECH-400Series

Handing: Non-handed

Door Thickness: Standard: 1-3/4(44mm).Optional door thickness available

Backset: 2-3/4(70mm).

Lockcase: Stainless steel;

Deadbolt: Stainless steel;1"(25mm) throw.

Strike: Stainless Steel,3-1/2"(89mm)x1-1/8"(29mm).Optional strikes available;

Cylinder:6-pin,"O" keyway. Security cylinder optional

Keys: 3 nickel brass keys.

Keying Features Available:Master keying, Construction master keying

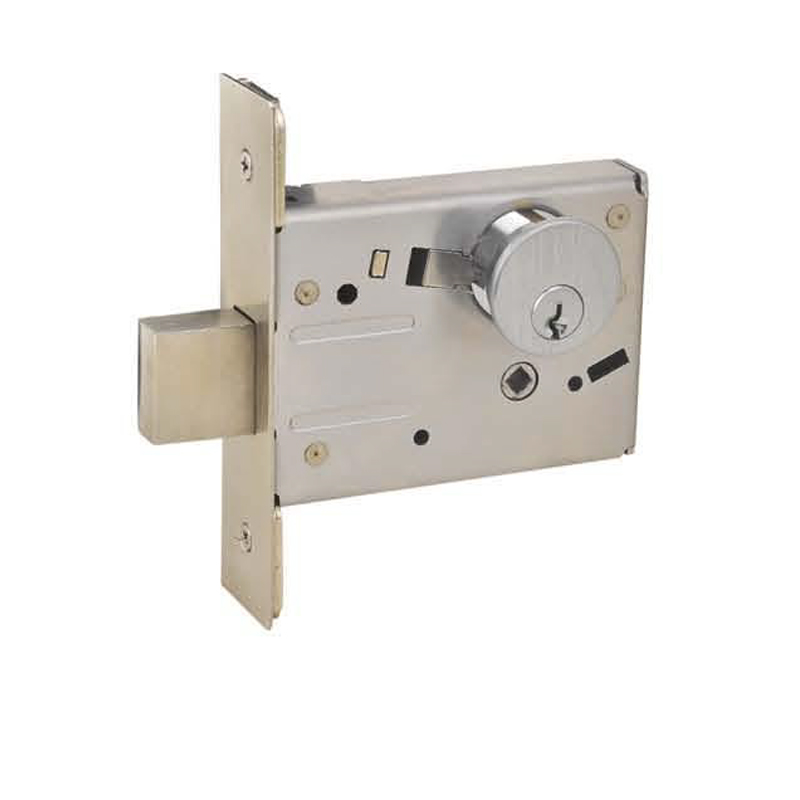

Product picture:
