adjusting concealed hinges for Stone gate

Views:24     Author:kerry     Publish Time: 2020-07-20      Origin:https://www.echardwarechina.com/

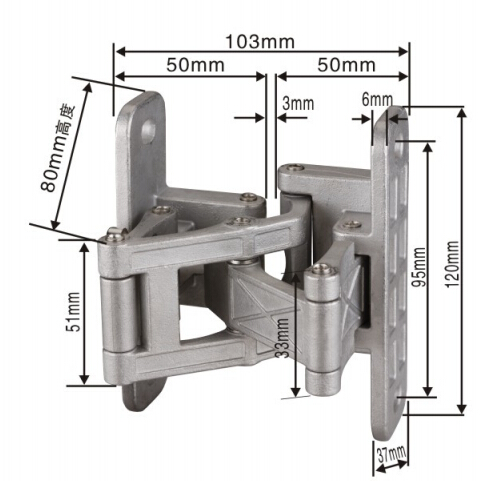

EG002

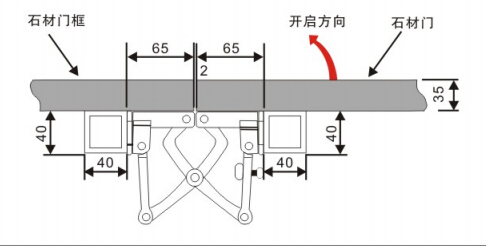

EG001-1

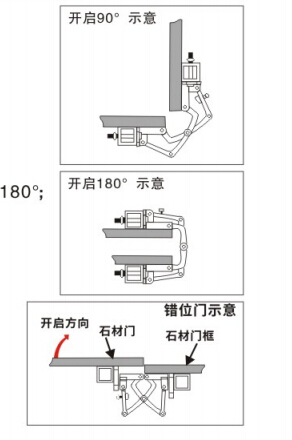

EG001-2

The product is SUS304 material

Carry the weights 150kg maximum

Door/frame:Length120x120  ,width:40x40mm

Maximum thickness of door plate:20mm

Opening Angle 160-180° maximum;

Can be realized up and down adjustment +-2.0mm

before and after the adjustment +-2.0mm;

easy to install and use;

Applicable to the left/right handle door tube well.

conceal hinge
