Interior Usage Soundproof Bifold Glass Door Folding Glass Partition

Views: 91     Author: Site Editor     Publish Time: 2021-03-10      Origin: Site

Interior Usage Soundproof Bifold Glass Door Folding Glass Partition

School sliding movable partition wall folding doors for classrooms
Product Name
ECH fordable door system F80
Anodized aluminum frames structure with insulation glass and floor and top track system
Smooth operation for opening and folding ,sound ,heat insolation and water proof
Strengthen paper carton and plywood case

  • Geranal specification

■80mm thickness panel ,minimum width 1500mm,Max height up to 3000mm. ■concealed hinge and,floor bolt, tracking system,simple appearance.
■single door leafe width:330mm to 1050m,max weights 120kg per leaf.
■clear anodized extruded aluminum
frames,customized powder coated color are available.
■supported with floor and top track with roller
■Clear or Low E toughened safety insulating glass 6mm+12A+6mm=24mm thickness
■Wind pressure resistance :international grade 5 (30000ps)
■Air Permeability
resistance:international grade 4(2.5m3/(m.h))
■Water tightness resistance:international grade 3(300pa)

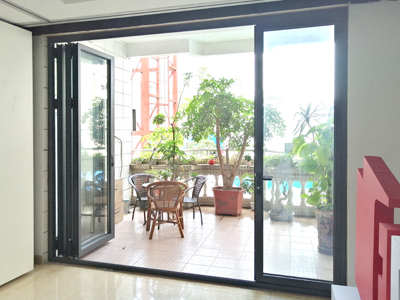

Glass floding door (1)

foldable door mechanical parts are all hidden in the profile cavity, with uniform pressure and smoother opening; it solves the problem that most of the ordinary foldign door may not smooth due to the exposed mechanical parts and the ash in the track may damages the pulley. Ou hinge is installed in the profile cavity with better stress, simple appearance and Enhance

Glass floding door (3)
