180 degree soft close hidden door hinge 3d adjustable heavy duty concealed door hinge

180 degree soft close hidden door hinge 3d adjustable heavy duty concealed door hinge
Min door thickness:
Max door width:
  • G80
  • ECH
  • 9.6/pcs

Product Details
Basic Info.


1.For wooden doors,flush doors,aluminum doors;

2.Concealed installation;

3.3D Adjustments:vertical ±3mm,horizontal ±3mm and depth ±1mm;

4.Opening angle 180°;


Technical Data:

1.Max.door weight with 2 hinges:80KG;

2.Min.door thickness:40mm;

3.Max.door width:1000mm;

4.Slim design for thin  door:24mm;

Hinge/door hinge/ zinc alloy door hinge/gate hinge

Welcome to a trial order!
Please contact us at any time!
Door hinge
The more quantity, the lower the price

Packaging & Delivery
Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days

Hidden door hinge

1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish

Type door hinge
Brand name ECH
Model NO. G80
Material zinc alloy
Finish Satin chrome/Satin nickel/Polished chrome/Polished nickel

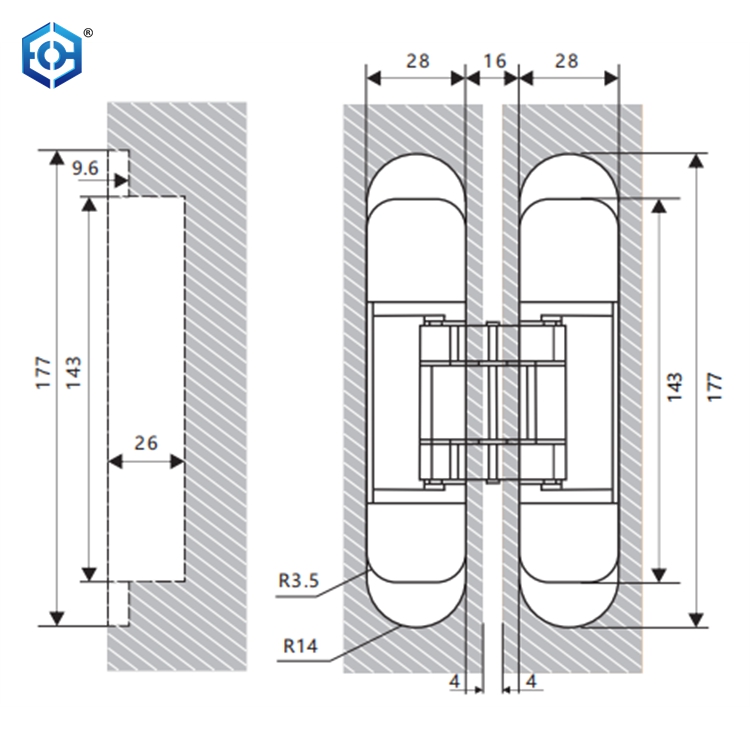

Size 177X28X25mm
Radius comer square corner
Inner packing soft foam pastic bag, color box and blister packing
Standard export packing one piece in one plastic bag, one pair in one white box, 20 pairs in one carton
Delivery day 30 working days
name hidden door hinge

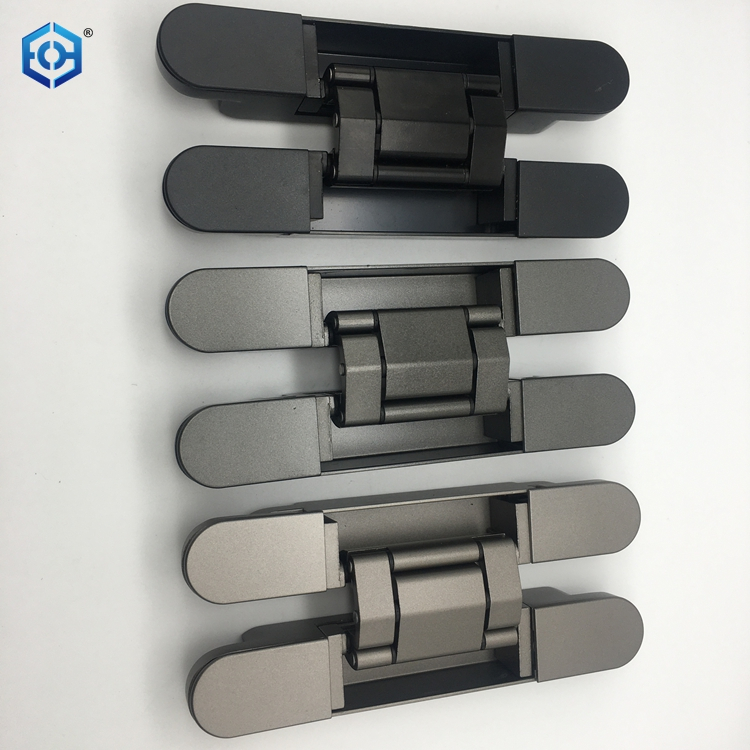

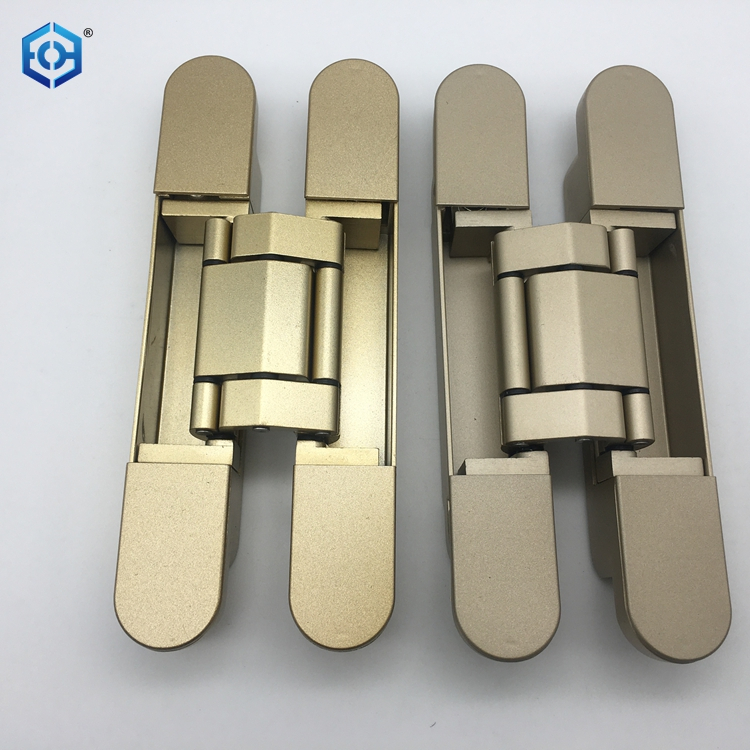

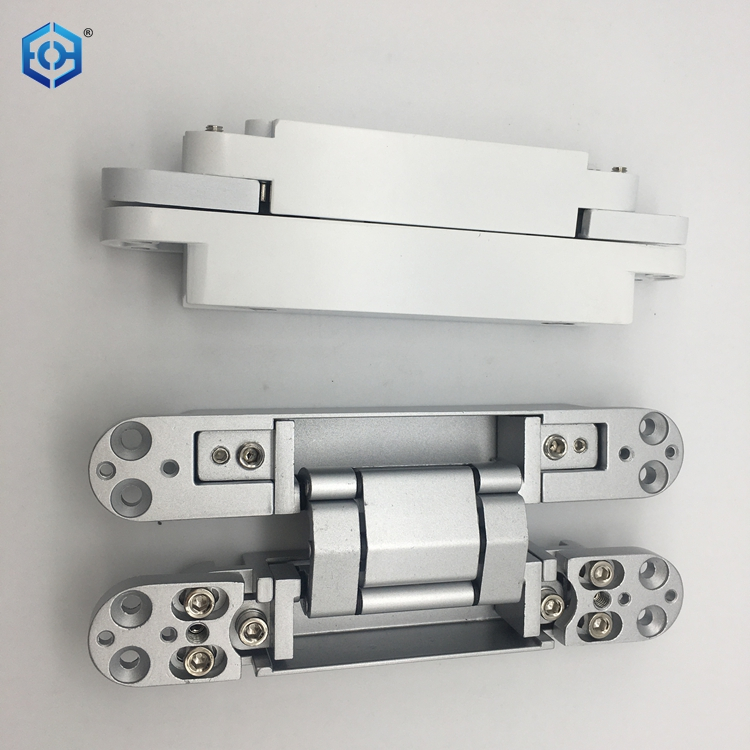

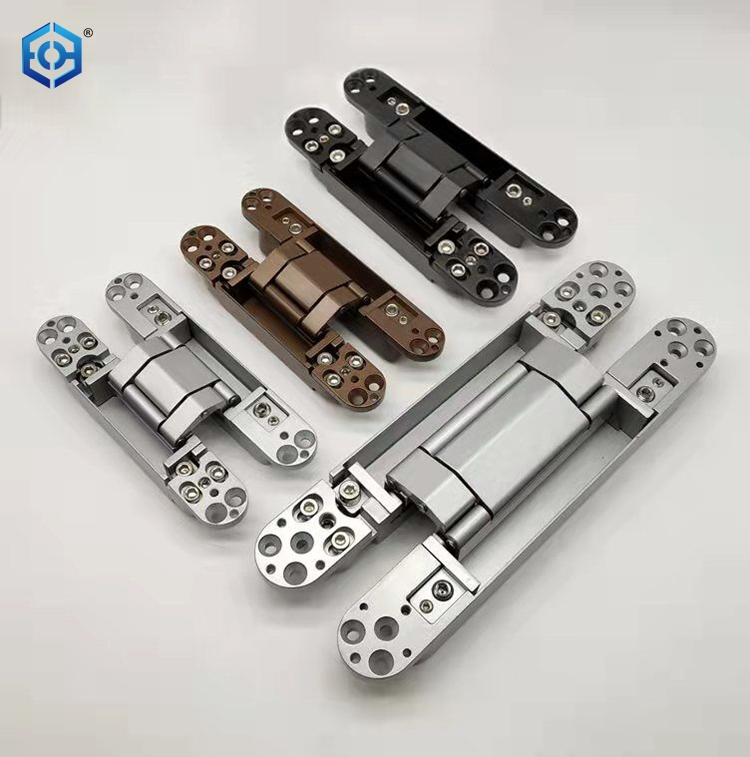

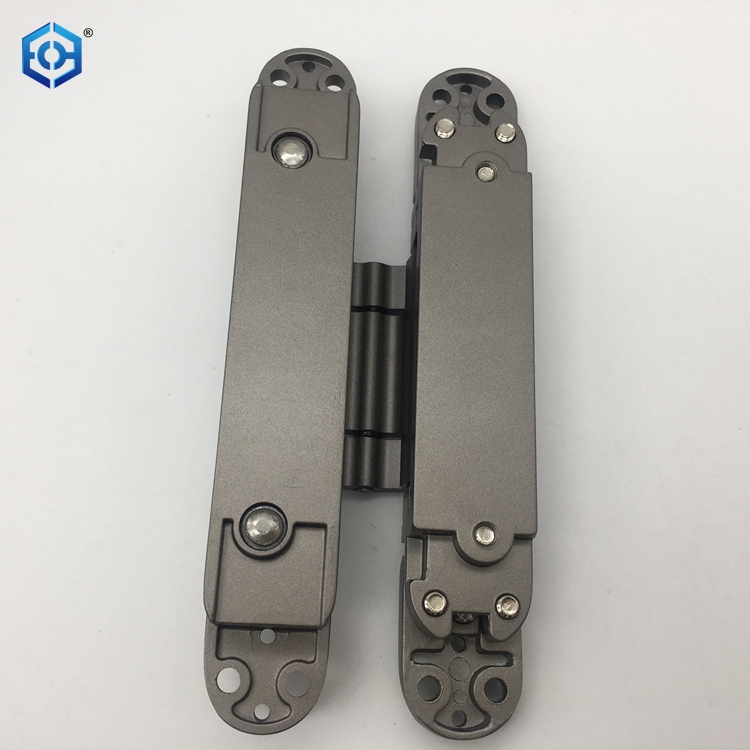

Product Picture:

G803d adjustable heavy duty concealed door hinge invisible door hingesconcealed hinges typeshidden cabinet door hinges

 Conceal Hinge for Wooden Door


3D Adjustable Concealed Hinge Heavy Duty


black conceal hingeadjustable l hinge (5)conceal hinge (2)
